Precision panel saw series

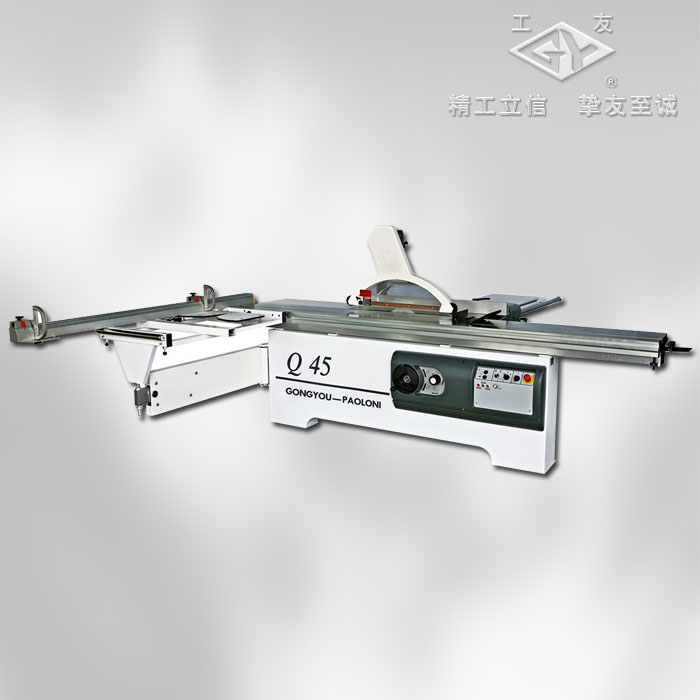

Q45 Double end panel saw
Q45 Double end panel saw
Technical Specification Unit Q45
Max.sawing length mm 3200
Max.sawing thickness mm 110
Main saw motor power kW 4
Main saw motor lifting power W 70
Main spindle speed
r/min
3000/3600/4200
Main spindle dia. mm Ø30
Main saw blade dia. mm Ø300-Ø400
Max.sawblade tilt angle   45°
Scoring saw motor kW 0.75
Scoring spindle dia. mm Ø20
Scoring sawblade dia. mm Ø125
Scoring spindle speed r/min 7600
Overall dimensions mm 3400×3360×1475
Net.weight kg 940
