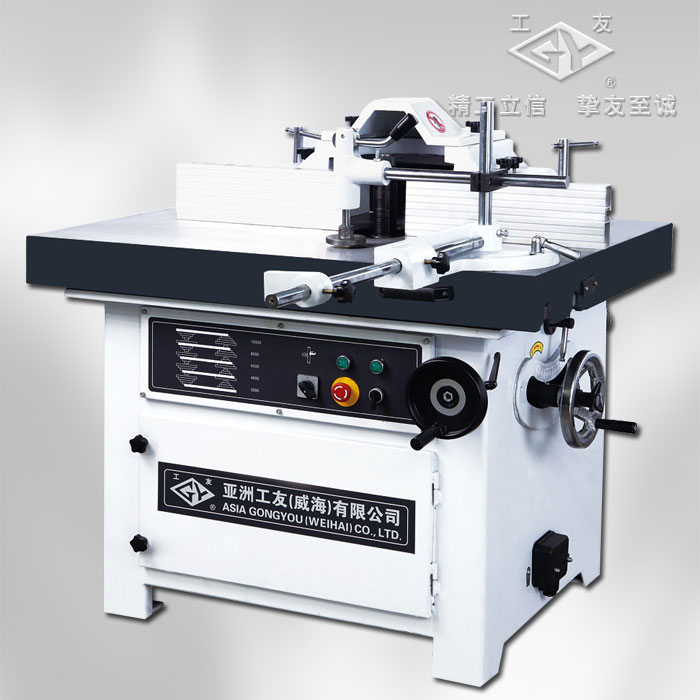

| Technical Specification | Unit | MX5615A |
| Main spindle speed | r/min | 10000/8000/6000/4000/3000 |
| Cutting circle diameter | mm | Ø35（Ø40 optional） |
| Max. milling height | mm | 150 |
| Tiltable angle of cutter arbor | 0~45° | |
| Table size | mm | 1100×550 |
| Max. hole size | mm | Ø200×80 |
| Travelling table size | mm | 1110×260 |
| Max. stroke of travelling table | mm | 800 |
| Working table hight | mm | 810 |
| Motor power | kW | 4 |
| Overall dimensions | mm | 1135×1525×1140 |
|
Net.weight |
kg | 480 |
