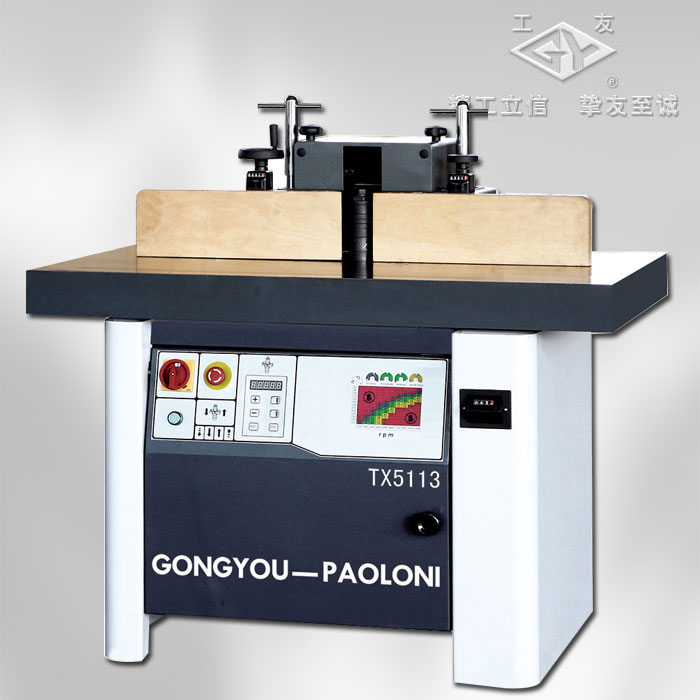

| Technical Specification | Unit | TX5113 |
| Main spindle speed | r/min | 5000-10000(Speed per 1000 as a regulator ) |
| Cutting circle diameter | mm | Ø40(Ø35 optional) |
| Max. milling height | mm | 130 |
| Min. copy radius | mm | R45 |
| Table size | mm | 1200×700 |
| Max. hole size | mm | Ø260×50 |
| Working table hight | mm | 820 |
| Motor power | kW | 4 |
| Overall dimensions | mm | 1200×780×1160 |
| Net.weight | kg |
320 |
