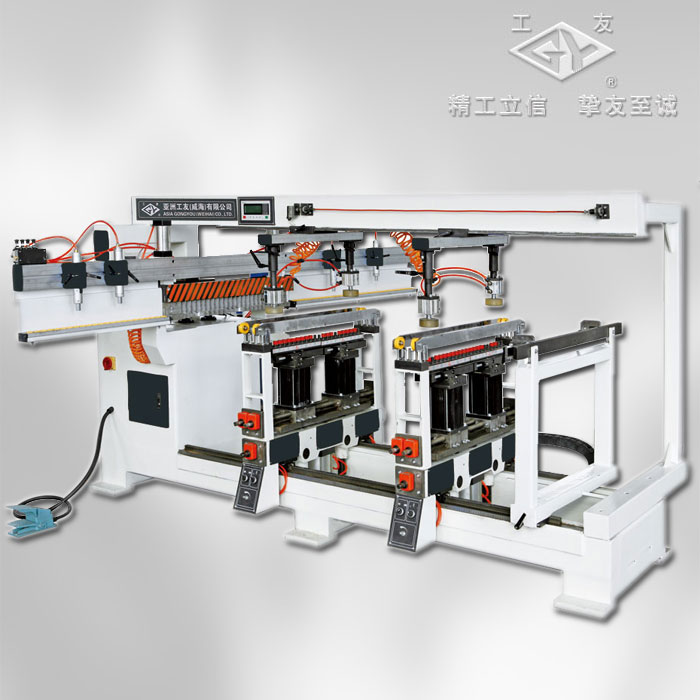

| Technical Specification | Unit | MZ7322D |
| Motor total power | kW | 1.5×5 |
| Motor speed | r/min | 2840 |
| Table size | mm | 1800×1000 |
| Working table hight | mm | 920 |
| Max.workpiece thickness | mm | 60 |
| Drilling depth | mm | 60 |
| Compressed air pressure | MPa | 0.5-0.6 |
| Min.distance between spindles | mm | 32 |
| Drilling row number | 22×3Unit | |
| Max.spindle center distance | mm | 640 |
| Overall dimensions | mm | 2622×2435×1480 |
| Net.weight |
kg |
1520 |
