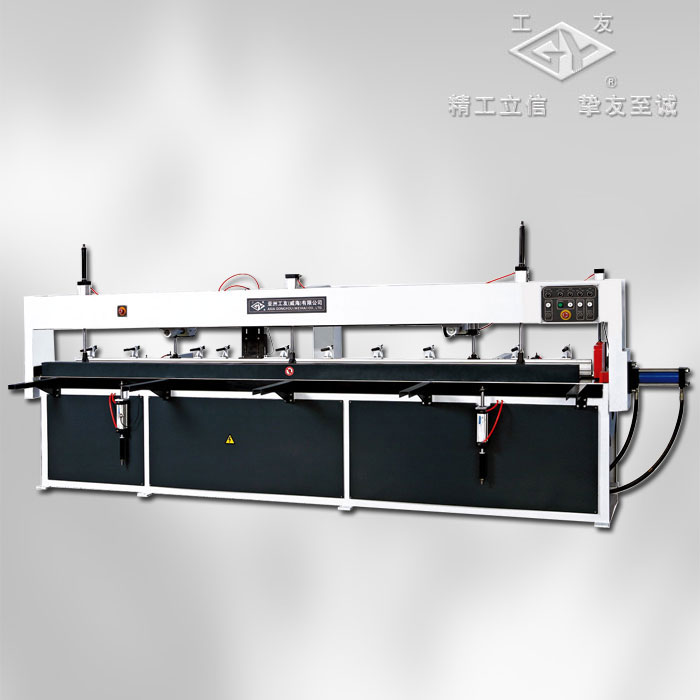

MHZ1540 MHZ1560 Auto Finger Joint Assembler
MHZ1540 MHZ1560 Auto Finger Joint Assembler
Technical Specification Unit MHZ1540 MHZ1560
Max. jointing length mm 4000 6200
Max. jointing width mm 130 130
Max. jointing thickness mm 75 75
Max. jointing force kg.f 6000 6000
Saw blade diameter mm Ø305 Ø305
Saw spindle speed r/min 3550 3550
Sawing motor power kW 2.2 2.2
Hydraulic pump motor power kW 3 3
Air source pressure MPa 0.6- 0.8 0.6- 0.8
Hydraulic rated pressure MPa 10 10
Power V/Hz 380/50 380/50
Overall dimensions mm 6021×1253×1490 8021×1253×1490
Net.weight
kg
2000 2160
