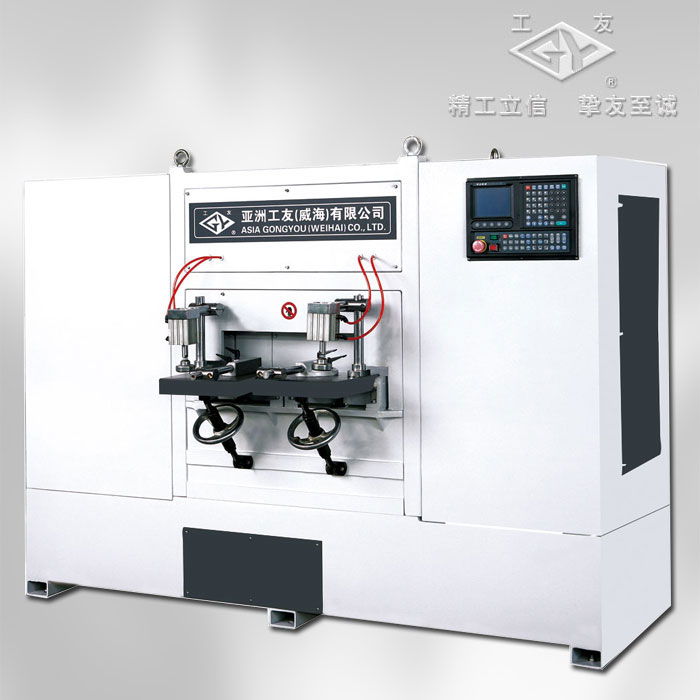

| Technical Specification | Unit | MXK3810 |
| Max. tenon width | mm | 100 |
| Max. tenon thickness | mm | 25 |
| Max. tenon depth | mm | 40 |
| Cutter internal diameter | mm | Ø30 |
| Cutter diameter | mm | Ø86(Ø114) |
| Main spindle speed | r/min | 7000 |
| Main motor power | kW | 3 |
| Table forward tilt angle | 0-30°(30°45°) | |
| Max.workpiece size | mm | 100×100(W×H) |
| Horizontal motor | kW | 1 |
| Vertical motor | W |
750 |
| Max.X working speed | m/min | 5 |
| Max.X moving speed | m/min |
10 |
| Max.Y working speed | m/min | 5 |
| Max.Y moving speed | m/min | 10 |
| Air source pressure | MPa | 0.4-0.6 |
| Overall dimensions | mm | 2250×1150×682 |
| Net.weight | kg | 1180 |
