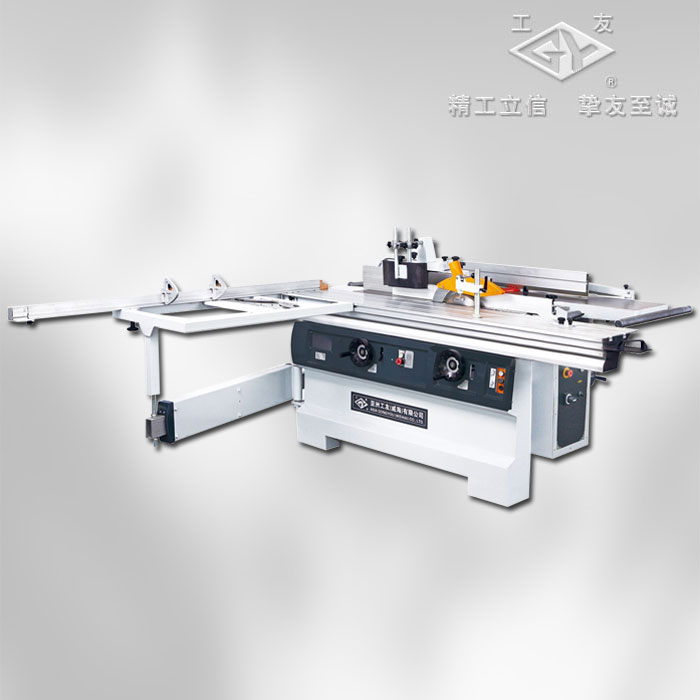

| Technical Specification | Unit | ML4520 |
| Max.sawing length | mm | 2250 |
| Max.sawing thickness | mm | 80 |
| Main saw motor power | kW | 3 |
| Main spindle speed | r/min | 3800 |
| Main spindle diameter | mm | Ø30 |
| Main saw blade dia. | mm | Ø300 |
| Sawblade tilt degree | 45°~90° | |
|
Scoring saw spindle speed |
r/min | 8000 |
| Scoring spindle dia. | mm | Ø20 |
| Scoring sawblade dia. | mm | Ø100 |
| Milling spindle stroke | mm | 200 |
| Max. milling height | mm | 120 |
| Milling spindle diameter | mm | Ø35 |
| Milling spindle motor power | kW | 3 |
| Main spindle speed |
r/min |
3500,6000,8000,10000 |
| Max. planing width | mm | 400 |
| Max. planing depth | mm | 5 |
| Planing spindle speed | r/min | 5200 |
| Planing spindle diameter | mm | Ø87 |
| Planing motor power | kW | 3 |
| Planing thickness | mm | 6~210 |
| Feeding speed | m/min | 6-12 |
| Max. mortise depth | mm | 100 |
| Max. mortise width | mm | 16 |
| Table lengthways stroke | mm | 105 |
| Table transverse stroke | mm | 160 |
| Bit fitting diameter | mm | Ø16 |
| Mortising table size | mm | 470×230 |
| Overall dimensions | mm | 2739×3636×1330 |
| Net.weight |
kg |
1100 |
