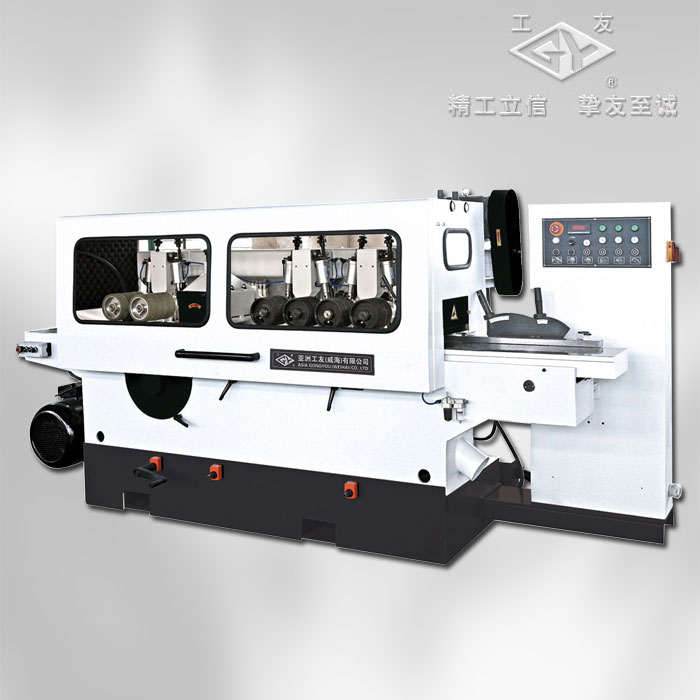

| Technical Specification | Unit | ML8320 |
| Max.working width | mm | 200 |
| Max.working thickness | mm | 70 |
| Max. planing depth | mm | 5 |
| Feeding speed | m/min | 4~18 |
| Spindle speed | r/min | 6000 |
| Saw spindle speed | r/min | 3800 |
| Total power | ||
| ① Feeding motor power |
kW |
3 |
| ②Lifting power of feeding motor | kW | 0.55 |
| ③Top horizontal cutter motor | kW | 3 |
| ④Bottom horizontal cutter motor | kW | 4 |
| ⑤Sawing motor power | kW | 22 |
| ⑥Total power | kW | 32.55 |
| Compressed air demand | m3/h | 0.1 |
| Air source pressure | MPa | 0.6 |
| Overall dimensions | mm | 3216×1209×1563 |
| Net.weight | kg | 3000 |
