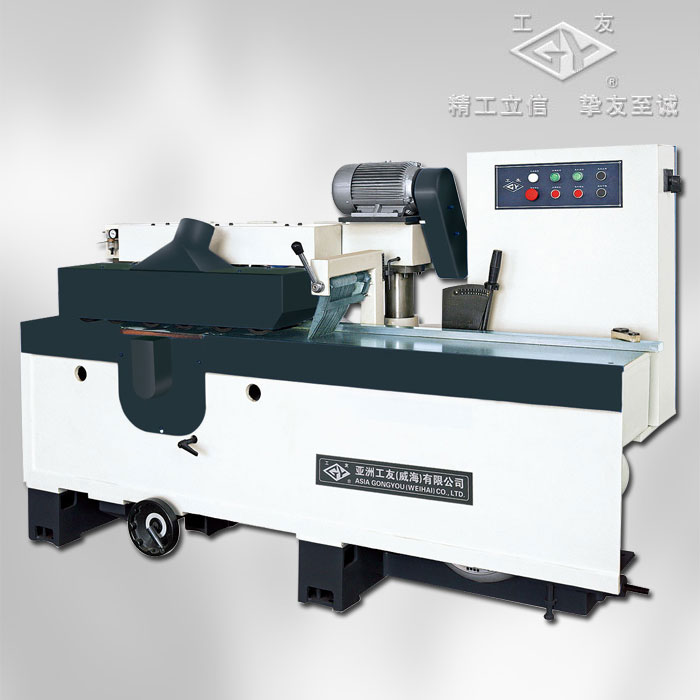

| Technical Specification | Unit | MJ162E |
| Min. sawing thickness | mm | 15 |
| Max.sawing thickness | mm | 60 |
| Min. sawing length | mm | 200 |
| Saw blade diameter | mm | Ø255 |
| Sawing width range | mm | 10-180 |
| Feeding speed | m/min | 8,10,12 |
| Sawblade quantity: |
4-8 |
|
| Main spindle motor power | kW | 22 |
| Main spindle speed | r/min | 4500 |
| Feeding motor | kW | 2.2 |
| Lifting motor | W | 550 |
| System pressure | MPa | 0.6 |
| Overall dimensions | mm | 2260×866×1490 |
| Net.weight | kg | 1574 |
