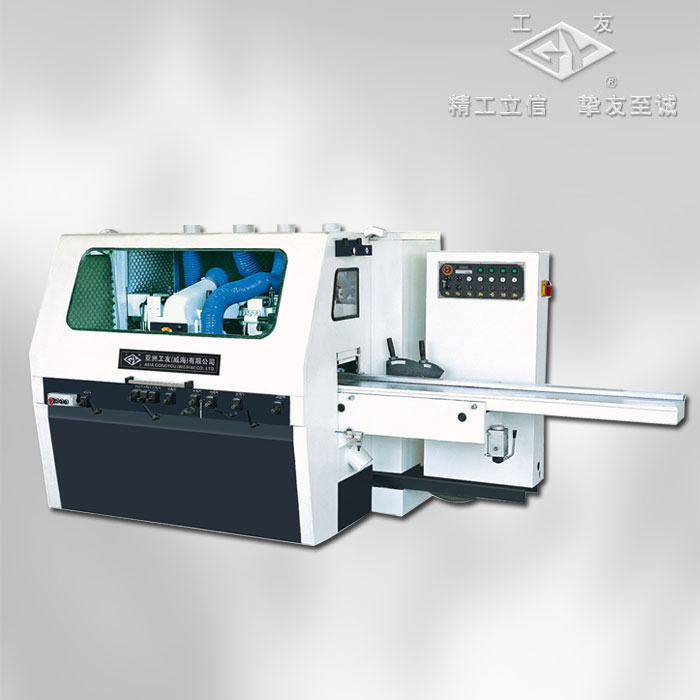

| Technical Specification | Unit | MB4016F/5 | MB4020F/6 | MB4020E |
| Max. planing width | mm | 165 | 200 | 200 |
| Min. planing width | mm | 25 | 25 | 25 |
| Max. planing thickness | mm | 100 | 120 | 120 |
| Min. planing thickness | mm | 10 | 10 | 10 |
| Front table length | mm | 1475 | 1975 | 1975 |
| Max. front table moving distance | mm | 5 | 5 | 5 |
| Max.right fence moving distance | mm | 10 | 10 | 10 |
| Feeding speed | m/min | 6～24 | 5~20 | 5~20 |
| Feed roller dia. | mm | Ø140 | Ø140 | Ø140 |
| Spindle speed | r/min | 6000 | 6000 | 6000 |
| Total power | kW | 30.05 | 38.55 | 29.55 |
| Compressed air demand | m³/h | 0.1 | 0.1 | 0.1 |
| Dust outlet dia. | mm | Ø120 | Ø120,Ø140 | Ø120,Ø140 |
| Air pressure | MPa | 0.6 | 0.6 | 0.6 |
| Overall dimensions | mm | 3570×1600×1700 | 4500×1640×1760 | 3740×1620×1720 |
| Net.weight |
kg |
2750 | 3860 | 2625 |
