Four side moulder series

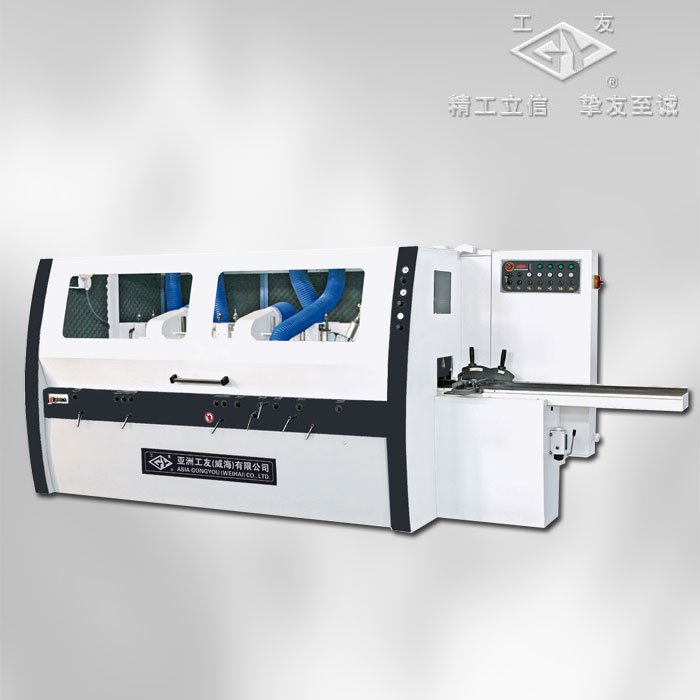

MB4016F(Five Spindles） MB4020F（Six Spindles ) 4-side Moulder

Technical Specification	Unit	MB4016F/5	MB4020F/6	MB4020E
Max. planing width	mm	165	200	200
Min. planing width	mm	25	25	25
Max. planing thickness	mm	100	120	120
Min. planing thickness	mm	10	10	10
Front table length	mm	1475	1975	1975
Max. front table moving distance	mm	5	5	5
Max.right fence moving distance	mm	10	10	10
Feeding speed	m/min	6～24	5~20	5~20
Feed roller dia.	mm	Ø140	Ø140	Ø140
Spindle speed	r/min	6000	6000	6000
Total power	kW	30.05	38.55	29.55
Compressed air demand	m³/h	0.1	0.1	0.1
Dust outlet dia.	mm	Ø120	Ø120,Ø140	Ø120,Ø140
Air pressure	MPa	0.6	0.6	0.6
Overall dimensions	mm	3570×1600×1700	4500×1640×1760	3740×1620×1720
Net.weight	kg	2750	3860	2625
