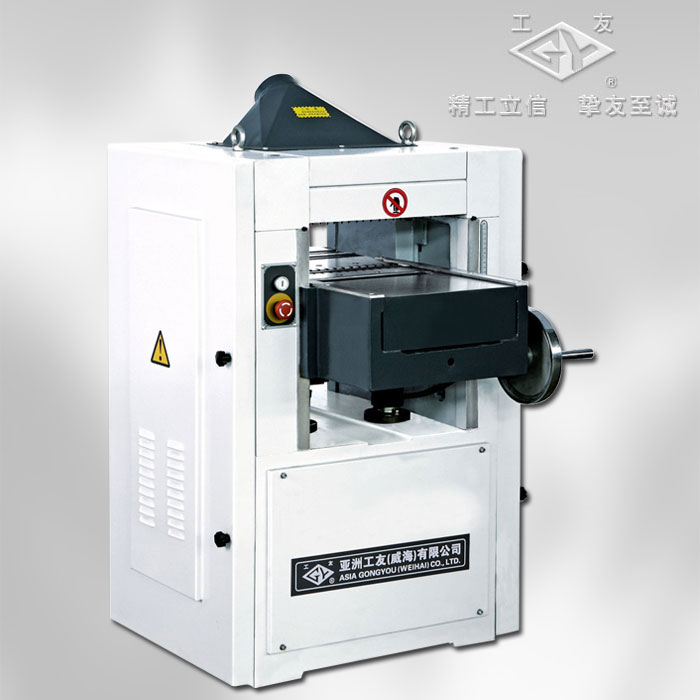

| Technical Specification | Unit | MB203A | MB204A |
| Max. planing width | mm | 300 | 400 |
| Planing thickness | mm | 8-120 | 8-120 |
| Main spindle speed | r/min | 5000 | 5000 |
| Min. planing length | mm | 390 | 390 |
| Feeding speed | m/min | 6,10 | 6,10 |
| Max.top cutter planing depth | mm | 4 | 4 |
| Max. bottom cutter planing depth | mm | 2 | 2 |
| Motor power | kW | 5.5 | 7.5 |
| Overall dimensions | mm | 730×940×1178 | 830×940×1178 |
|
Net.weight |
kg |
510 |
580 |
