| Technical Specification | Unit |

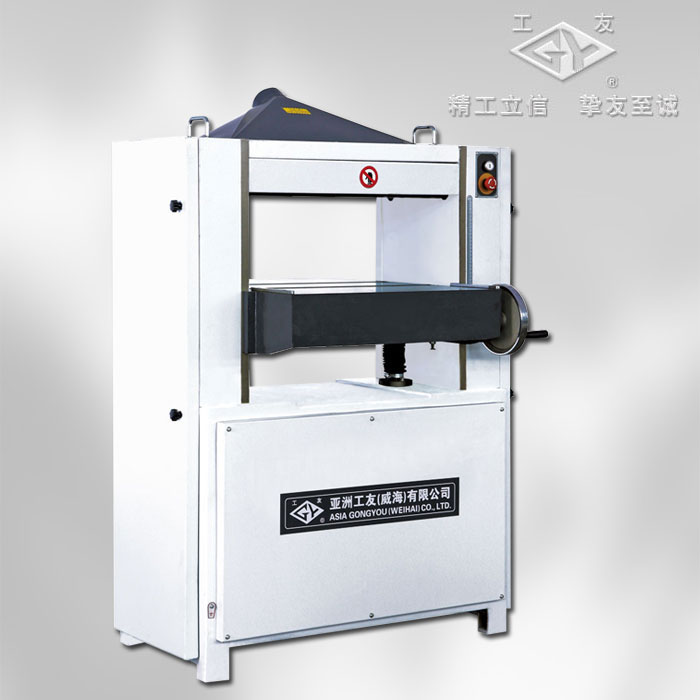

MB106G |
| Max. planing width |
mm |
630 |
| Max. planing thickness | mm | 300 |
| Min. planing thickness | mm | 8 |
| Min. planing length | mm |
220 |
| Feeding speed | m/min | 8;10;12 |
| Max. planing depth | mm | 5 |
| Spindle speed | r/min | 4800 |
| Blade number |
4 |
|
| Cutting circle diameter |
mm |
Ø105 |
| Motor | kW | 7.5 |
| Dust outlet dia. | mm | Ø100 |
| Overall dimensions | mm | 1080×830×1380 |
| Net.weight | kg | 596 |
