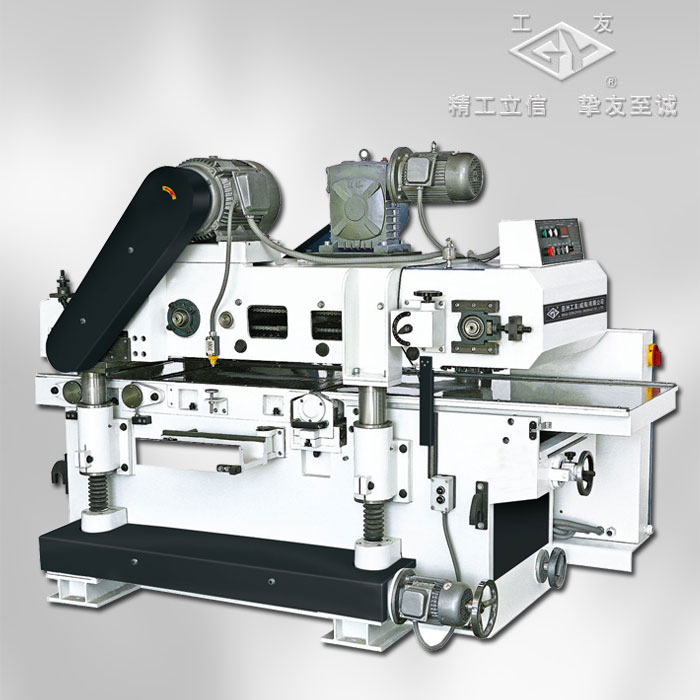

| Technical Specification | Unit | MB204E | MB206E |
| Max. planing width | mm | 400 | 630 |
| Max. planing thickness | mm | 120 | 150 |
| Min. planing length | mm | 300 | 300 |
| Min. planing thickness | mm | 10 | 10 |
| Top cutter planing capacity | mm | 7 | 7 |
| Bottom cutter planing capacity | mm | 5 | 5 |
| Feeding speed | m/min | 5-20 | 6-18 |
| Spindle speed | r/min | 5000 | 5000 |
| Planing spindle diameter | mm | Ø112 | Ø112 |
| Bottom horizontal cutter motor | kW | 7.5 | 11 |
| Top horizontal cutter motor | kW | 4 | 7.5 |
| Feed motor | kW | 2.2 | 3 |
| Lifting motor of feed mechanism | kW | 0.75 | 0.75 |
| Overall dimensions | mm | 2500×1210×1630 | 2500×1440×1685 |
| Net.weight | kg | 2400 | 3200 |
